Name |

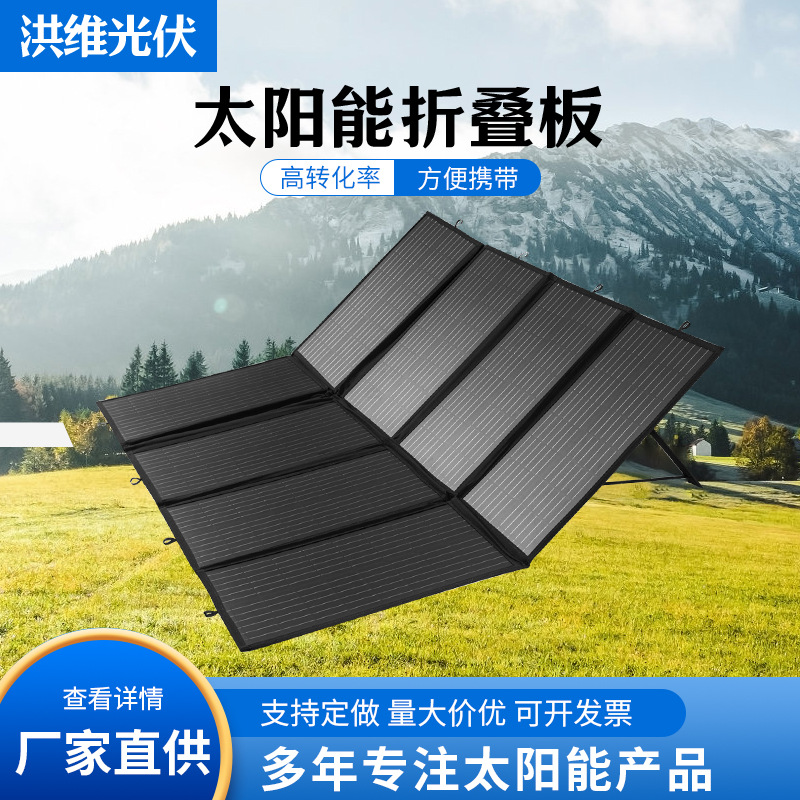

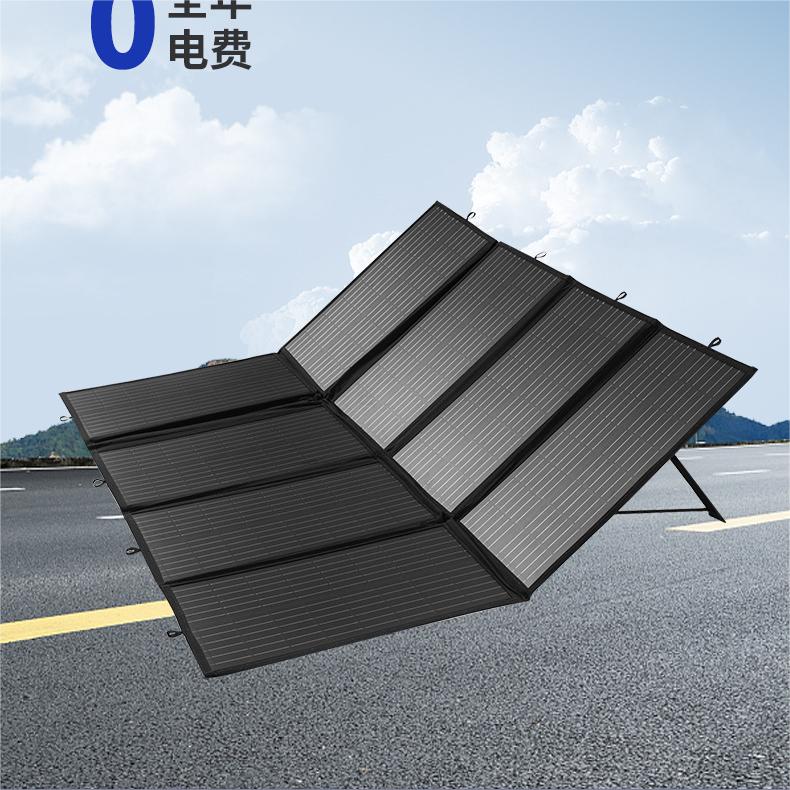

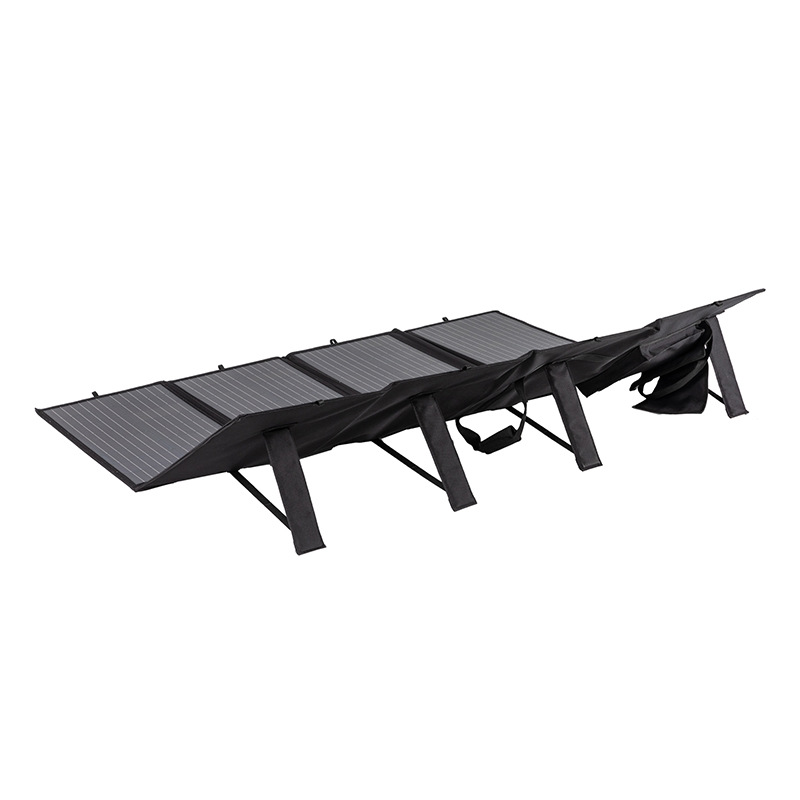

Solar folding panel |
|
Product Model |
300W8 new |
|
Maximum power (Pmax) |
300W |
|
Optimum operating voltage (Vmp) |
18V |
|
Optimum operating current (IMP) |
16.67A |
|
Open circuit voltage (Voc) |
21.6V |
|
Short circuit current (Isc) |
17.67A |
|
Operating temperature |
-40°Cto +85C |
|
Power tolerance |
±3% |
|
Net weight |
9.155KG |
|
Total solar panels |
8PCS |
|

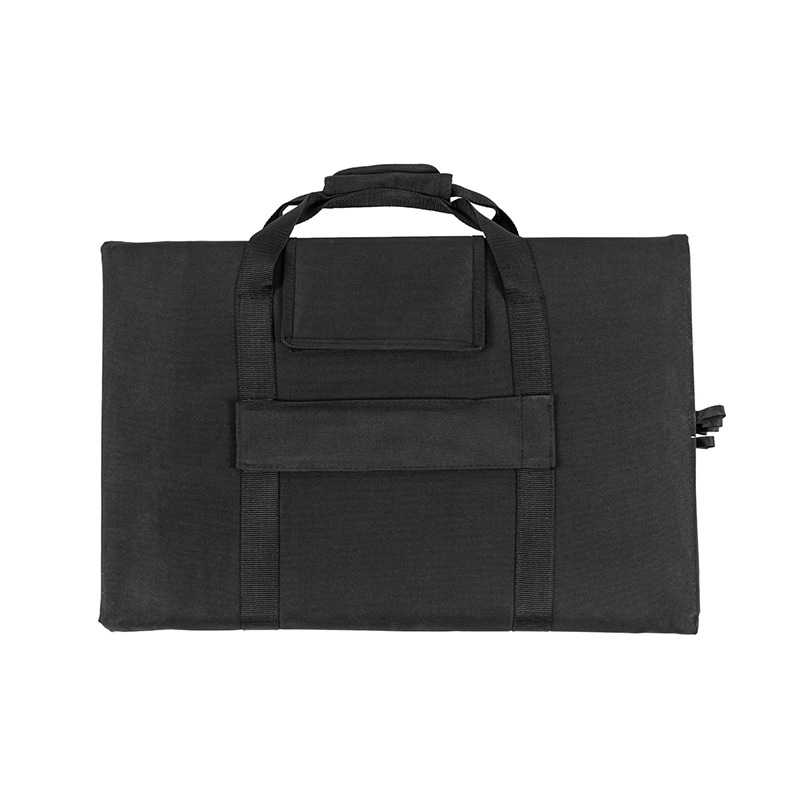

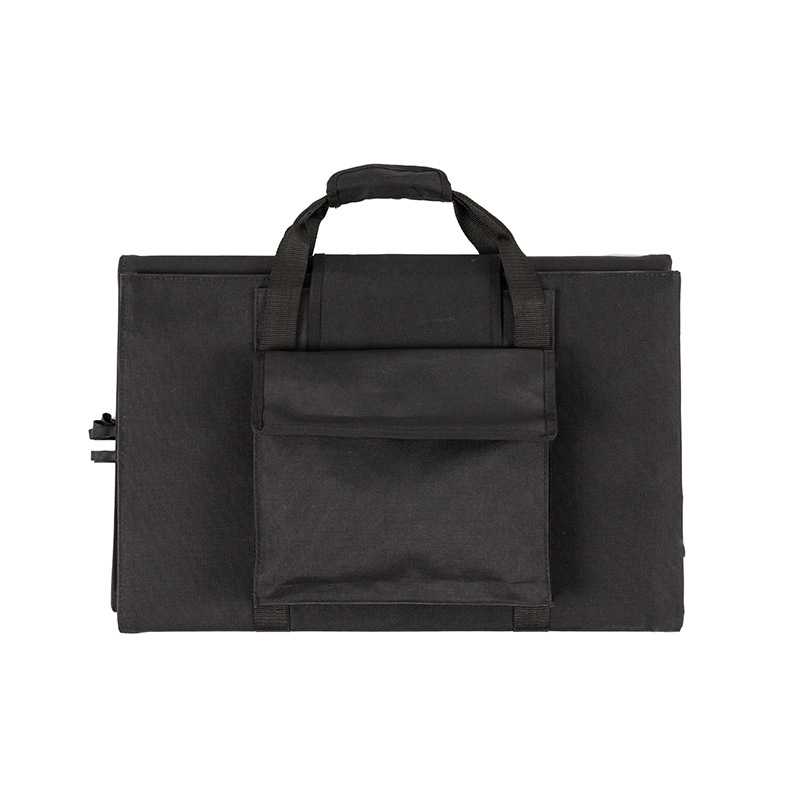

Folding size |
580*400*100mm |
|
Expansion size |
2520*800*8mm |
|
Battery type |
Single crystal |
|
Battery efficiency |
22% |
